Lot: W0550
Make: Kearns
Richards
Model: SJ100

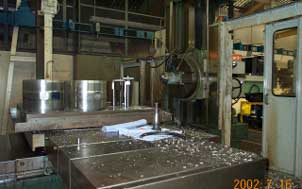

Description: Horizontal
Borer
Manufactured: 1978
Serial No: 7036
Weight: 18 Tonnes
Dimensions: Height
11' 0", Width 15' 0", Length 17' 8" (With guards)
Location:
Manchester
Notes: Revolving
table size 59" x 59"
Spindle dia 4"
Facing head - dia 26.5", cap. 40.5"
Facing slide traverse 7"
Spindle frame vertical traverse 47"
Table longditudinal 47"
Table sideways traverse 59"
Table load capacity 5 tonnes
Machine converted to CNC 1995. Philips V210.
Coolant unit and seperate 24" rotary table (making 6 axis total)
